DLC涂层

照片10
照片9

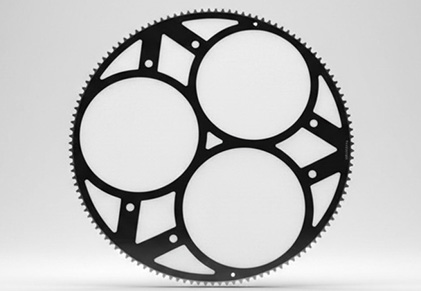

照片8
照片7
照片6
照片5
照片4
照片3
照片2
应用照片
装饰1
12

涂层种类

Division Coating Materials Process Properties Features Applications
Method Temperature
(°C)
Hardness
(Hv)
Friction
C.O.F
Thickness
(um)
Max Temp
(°C)
Color Friction Wear Sticking Thermal Corrosion Decorative
Cutting DURON-A TiN CA 500 2,600 0.5 2-5 600 Gold Tool, Mold
DURON-T AlTi Based CA 500 3,300 0.5 2-5 900 Gray Tool
DURON-H(S) AlCr Based CA 500 3,200 0.5 2-5 900 Blue Gray Hob
DURON-M AlCr Based CA 500 3,200 0.5 2-5 900 Blue Gray Tool
Forming CrN plus CrN nano CA 500 2,500 0.5 5-15 600 Gray Cold forming
HEPHAIS TiAlCr Based CA 500 3,100 0.5 5-15 900 Gray High tensile strength steel
POLLUX TiAlCrSi Based CA 500 2,900 0.5 5-15 1,000 Gray Die casting, forming
TD VC SB 1,050 2,700 0.5 8-10 600 Gray Cold forming
Tribology LOFRI-N CrN SP, CA 200, 500 1,000-2,000 0.5 1-20 600 Gray Automotive
LOFRI-W a-C:H:W SP 200 1,700 0.2 1-5 300 Gray Black Automotive

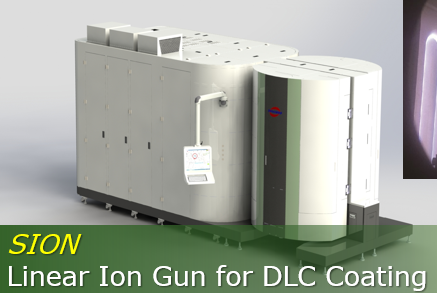

LOFRI-A,I a-C:H PC,IG 200 2,000 0.2 1-5 300 Black Automotive, Tool
LOFRI-C a-C:H SP 200 3,000 0.2 1-2 300 Black Automotive, Tool
LOFRI-S a-C:H:Si PC 200 1,800 0.1 1-8 500 Black Automotive

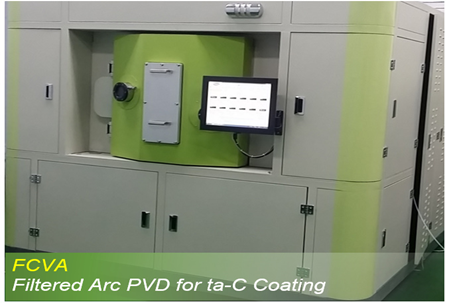

LOFRI-T ta-C FCA 100 2,000-6,500 0.2 1-8 500 Rainbow Black Gray Automotive, Tool
CA : Cathodic Arc, SB : Salt Bath, SP : Sputtering, PC : PACVD, IG : Ion Gun, FCA : Filtered Cathodic Arc
