ta-C涂层

ta-C涂层

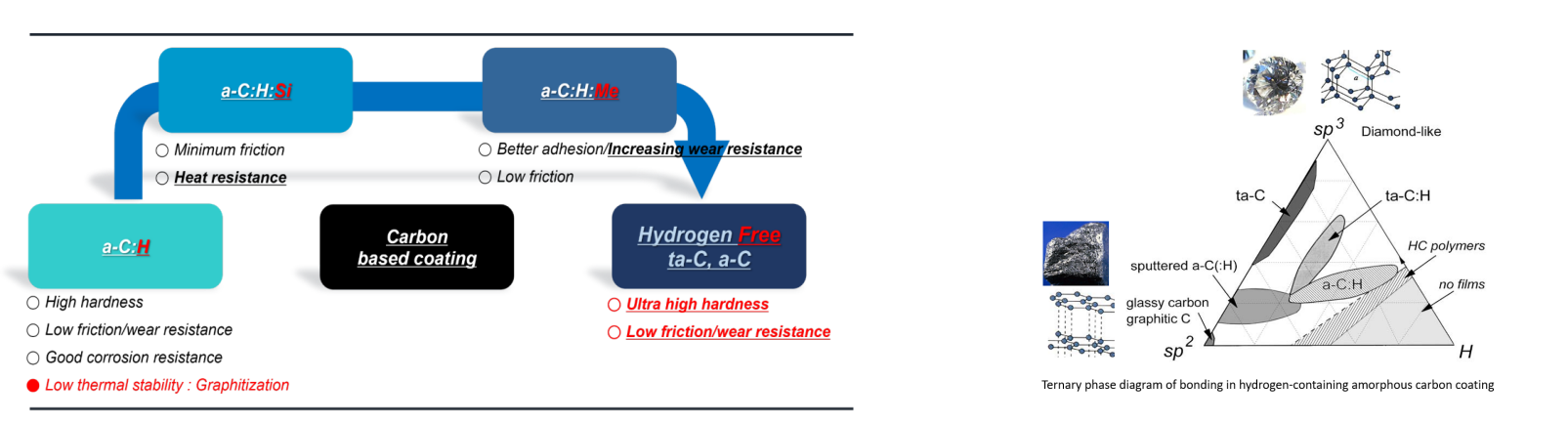

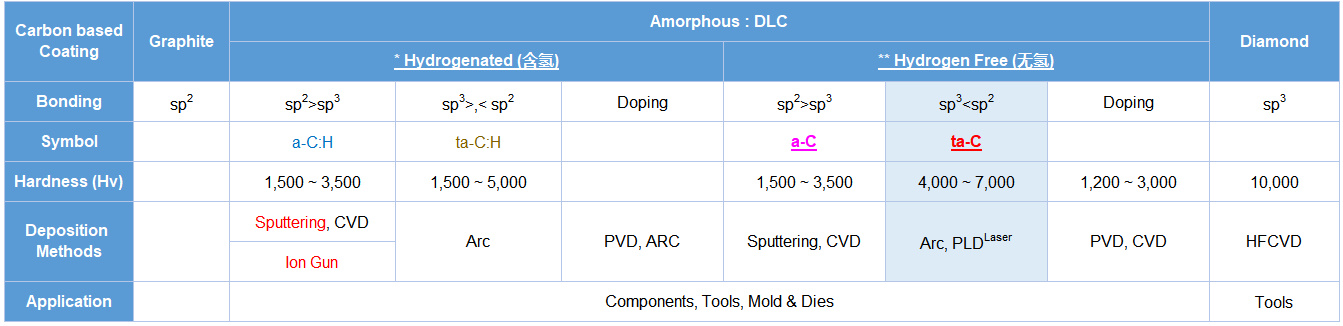

Trend of Carbon based (DLC) Coating

ta-c涂层(图1)


ta-c涂层(图2)

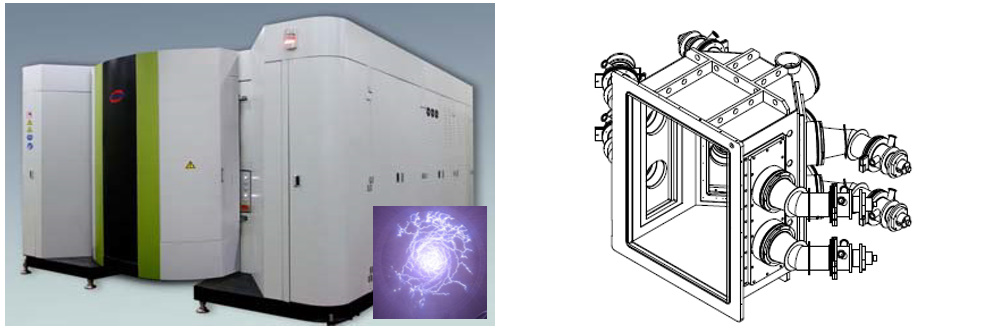

● FCVA 方式 (Filtered Catodic Vacuum Arc)


ta-c涂层(图3)

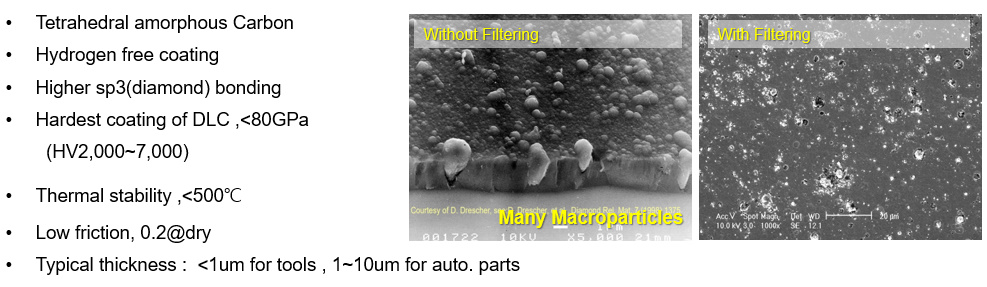

特性

ta-c涂层(图4)

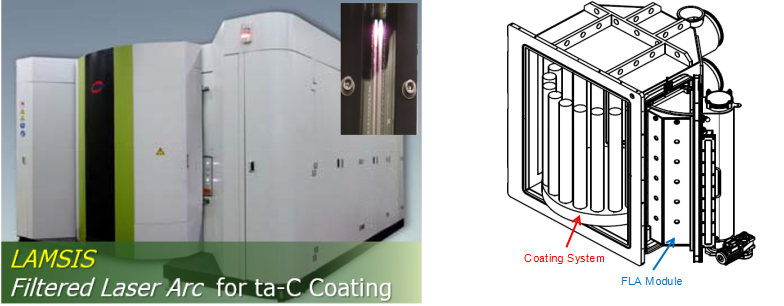

● FLA 方式 (Filtered Laser Arc)


ta-c涂层(图5)


LAMSIS is the filtered laser arc system for mass production of hydrogen free DLC(ta-C, a-C) coatings

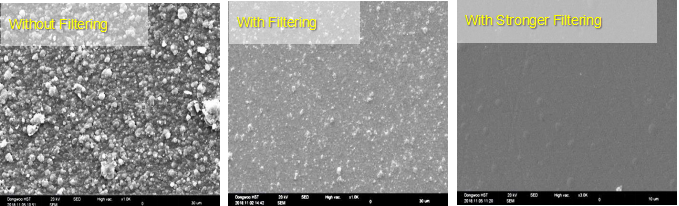

Better surface roughness can be achieved with a bent duct and electromagnetic filtering

Suitable for mass production with scale-up to higher coating height and faster deposition rate


[ Features ]

Effective zone : Φ800 x  max. H600~800mm

Thickness : 1~6um

Hardness : 15~60GPa depending on applications

Deposition rate : 0.3um/hH600 in double rotation with one laser


ta-c涂层(图9)


涂层种类

Coating MaterialProcessPropertiesFeatures
Methode Temp.HardnessCOFThickMax Temp.ColorFrictionWearStickTemp.Corros.Deco.
LoTribo NCrNSP/CA200~500℃20000.51~20㎛600℃Gray
LoTribo Wa-C:H:WSP200℃1,700 0.21~5㎛300℃Gray Black


LoTribo A,Ia-C:HPC/IG200℃2,000 0.21~5㎛300℃Black
LoTribo Ca-C:HSP200℃3,000 0.21~5㎛300℃Black


LoTribo Sa-C:H:SiPC 200℃2,000 0.11~8㎛600℃Black

LoTribo Tta-CFCA100℃1,800~6,5000.21~8㎛600℃Rainbow
Black Gray



涂层应用
